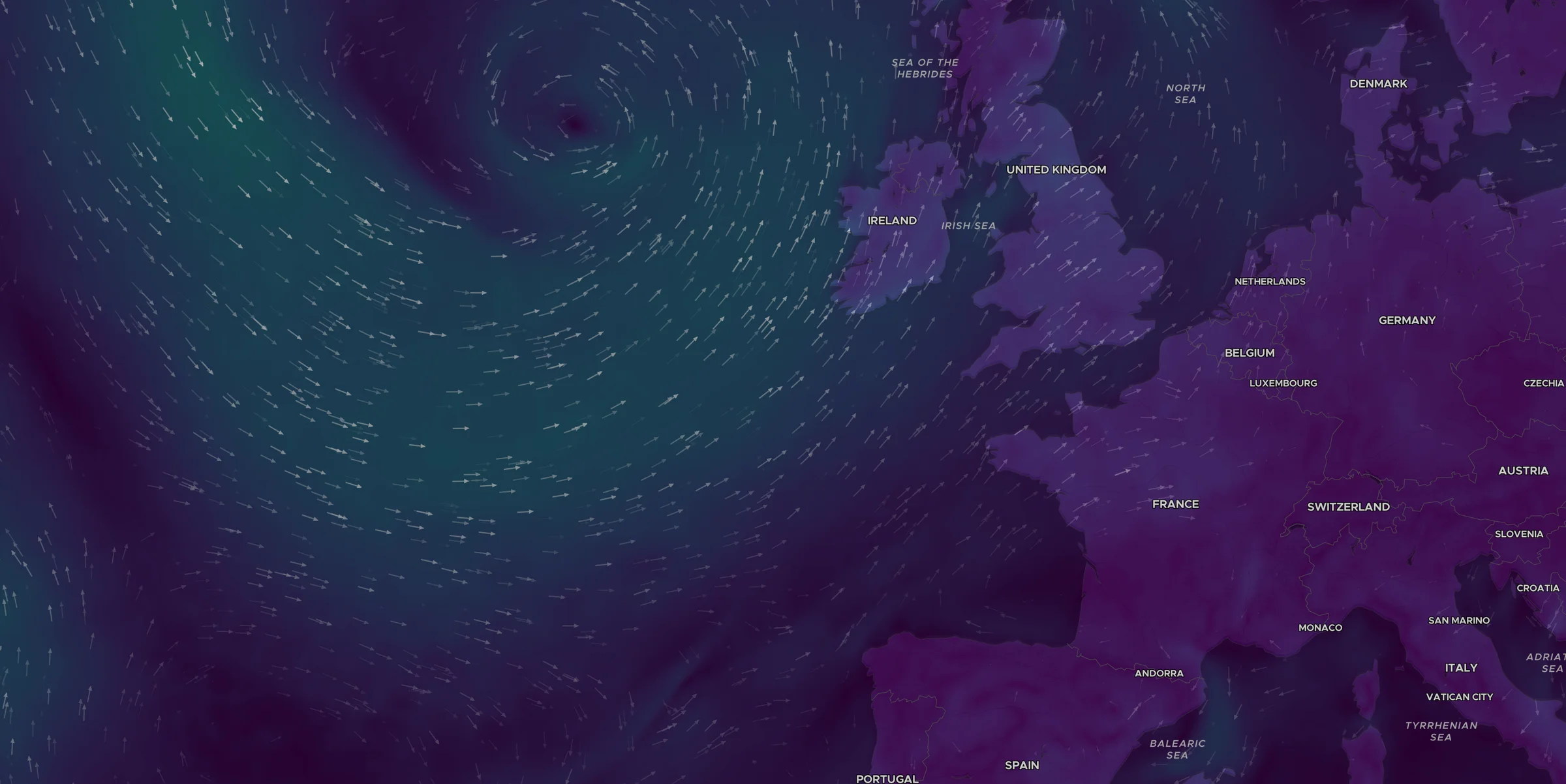

Wind arrow layer

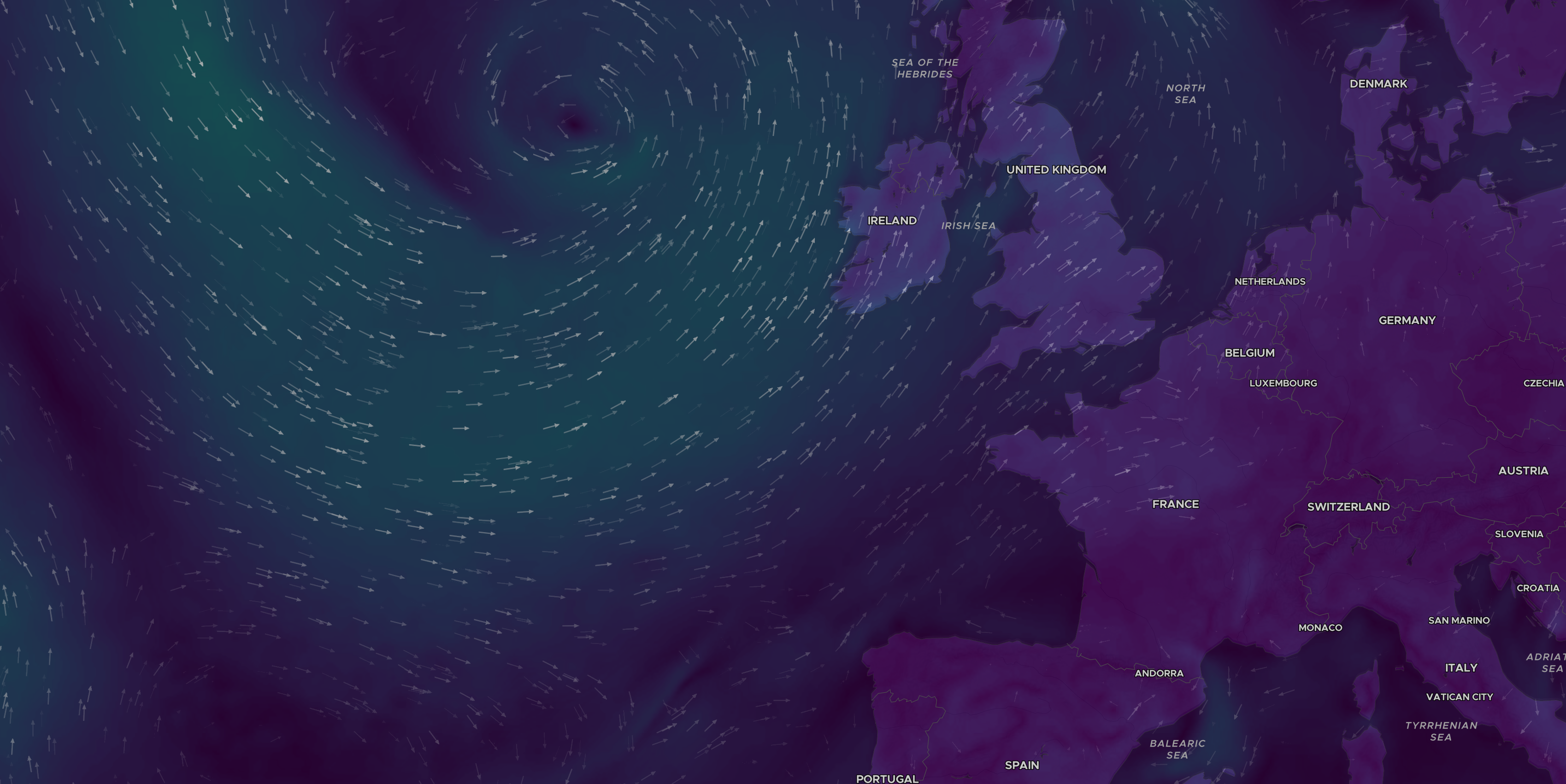

The WindArrowLayer shows the wind speed in meter per second (m/s). Forecast for speed and direction at an altitude of 10 m above ground.

The WindArrowLayer contains both a background to which is applied a color ramp and a set of moving arrow-shaped particles, for this reason, the constructor WindArrowLayer has more options that then other weather layers.

Example

Extends: Arrow layer

Parameters

options (WindArrowLayerOptions)?

Options to provide to the Layer constructor (WindArrowLayerOptions)

Properties

options.id string default: "MapTiler Arrow Wind"	ID of the layer
options.colorramp ColorRamp default: `ColorRamp.builtin.VIRIDIS`	Colormap to use. Maximum range possible spans from 0 m/s to 75 m/s. Default spans from 0 m/s to 40 m/s
options.opacity number default: 0.8	Opacity of the layer in [0, 1]
options.smooth boolean default: true	Whether or not the colorramp must be smooth
options.color RgbaColor default: [255, 255, 255, 192]	Color of the arrows when slow. RGBA 0-255.
options.fastColor RgbaColor default: [255, 255, 255, 192]	Color of the arrows when moving "fast". RGBA 0-255.
options.density number default: 2	Number of arrows visible per 1000 px^2
options.fadeFactor number default: 0.1	How much the particles fade over time
options.fastSpeed number default: 0.8	What is considered "fast" (in px/sec) for coloring purposes. Only makes sense when fastColor is used
options.maxAmount number default: 128	Quantity of arrows to be created. Has to be a power of 2 and at least 4. The actual exact number will be arrows * arrows. Try to keep this value as low as possible to optimize performance. The number of actually visible arrows is determined by density.
options.pixelRatio number default: 2 for normal displays and 1 for HiDPI displays	Use more pixels to make particles more smooth (especially when tilted)
options.refreshInterval number default: 800	Time interval (in milliseconds) how often the arrows are refreshed to avoid degradation. Random 1/4 of the arrows is always randomly reset
options.rttTimestep number default: 200	Timestep between arrows render - shorter value means smoother direction change, but can lead to errors in speed computation (current speed is derived from movement on screen) which cause size and color glitches.
options.size number default: 18	Size of the arrows
options.speed number default: 0.001	Speed factor of the arrows
options.worldSpaceConstant boolean default: false	The world space constant (when `true`) means the speed of the arrows is compensated with the zoom level so that they travel the same real world distance per unit of time. When `false`, the arrows travel the same distance in screen space, so that regardless the zoom level, they will travel a constant number of pixels per unit of time.

Methods

Check out the Layers method reference

pickAt (lng, lat)

Get the wind speed and direction in multiple measurement units at a given location

Parameters

lng (number) : longitude

lat (number) : latitude

Returns

Object: the value(s) as an object.

compassDirection string	Conventionnaly, wind direction is refered as where the wind comes from. For instance a north wind is a wind coming from the north. This property retrieves one of the 16 compass direction.
directionAngle number	Angular direction in dregree towards which the wind is blowing, with: 0°: true north 90°: east 180°: south 270°: west
speedFeetPerSecond number	Wind speed in ft/s (feet per second)
speedKilometersPerHour number	Wind speed in km/h (kilometer per hour)
speedKnots number	Wind speed in knots (nautical miles per hour)
speedMetersPerSecond number	Wind speed in m/s (meters per second)
speedMilesPerHour number	Wind speed in mph (miles per hour)
